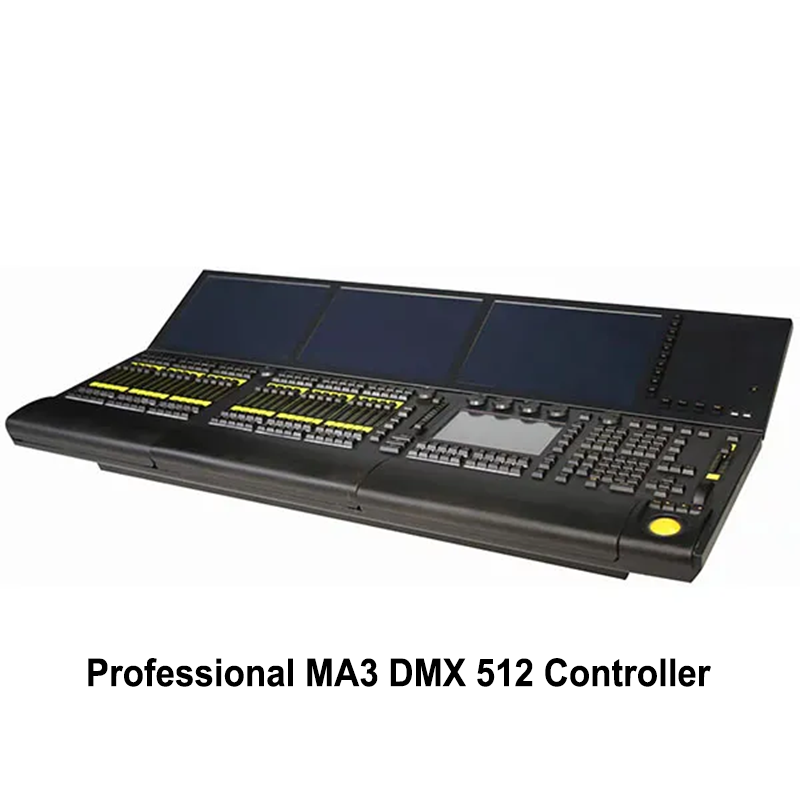

Professional MA3 DMX 512 Controller

1) Improve performance effects
The Professional MA3 DMX 512 Controller can achieve precise lighting control, create stunning visual effects for performances and activities, and enhance the audience's viewing experience.
Through rich lighting effects and dynamic changes, the stage's expressiveness and artistic appeal can be enhanced.
2) Improve work efficiency
The intuitive operating interface and flexible programming functions enable lighting designers and operators to quickly complete lighting design and debugging work and improve work efficiency.
You can preset a variety of scenes and effects to facilitate fast switching between different performances and activities, saving time and labor costs.
3) Enhance equipment compatibility
Compatible with a variety of lamps and equipment, it reduces the difficulty of equipment procurement and integration and reduces costs.
Supports multiple communication protocols, which is convenient for integration with other lighting control equipment and systems to achieve more complex lighting control solutions.
4) Ensure equipment reliability
High-quality hardware materials and advanced manufacturing processes ensure that the equipment is stable and reliable during long-term use and reduce the probability of failure.
Complete fault detection and protection functions can detect and solve problems in a timely manner to ensure the smooth progress of performances and activities.

 Contact us
Buy it now

Technical specifications

  • AC90-250V,50-60Hz
  • Linux operating system
  • Industrial-grade motherboard powerful i5CPU, 4G memory, built-in solid state drive 120G
  • 6 DMX output ports, 1 composite DMX input port (can be set as output)
  • Connect with NPU to support up to 65536 channels
  • Built-in 3 electric lift 15.4-inch industrial full-view touch screen, 1 9-inch touch screen
  • Built-in 1 USB port dedicated for 18w fast charging mobile phone charging
  • 30 electric playback faders with induction function (60mm), 80 program keys
  • 1 master control fader ➤: 1 dimming wheel
  • 1 controllable XY axis high-precision imported trackball
  • 2 A/B field electric putters (100mm)
  • 7 imported industrial grade wear-resistant encoders (with Push function)
  • 2 Gigabit Ethernet ports, support MA NET, ARTNET, and other signals
  • 5 USB ports, 1 backup USB access port
  • 2 work light ports ➤: 2 DVI ports, two displays can be expanded
  • Built-in 2 drawers, built-in yellow backlit mechanical keyboard (backlight brightness adjustable)
  • Built-in high-power UPS uninterruptible power supply
  • Support RDM function
